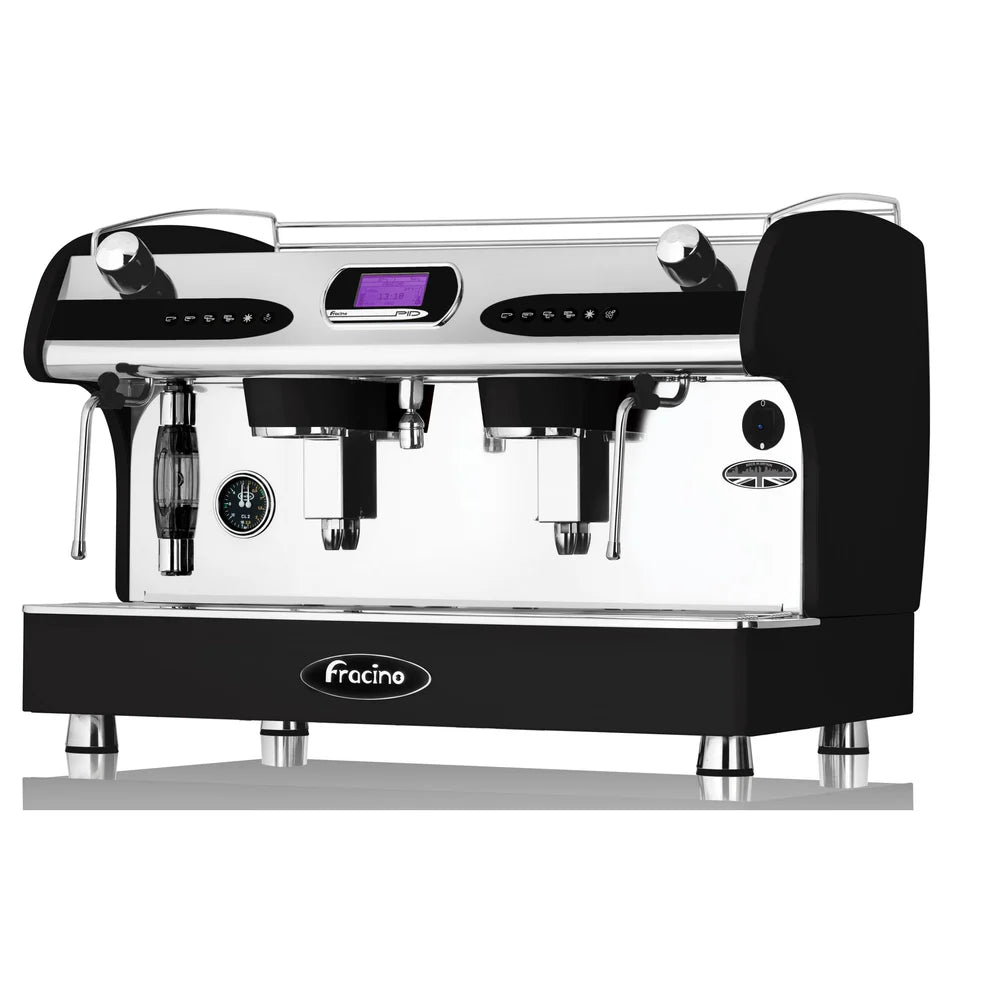

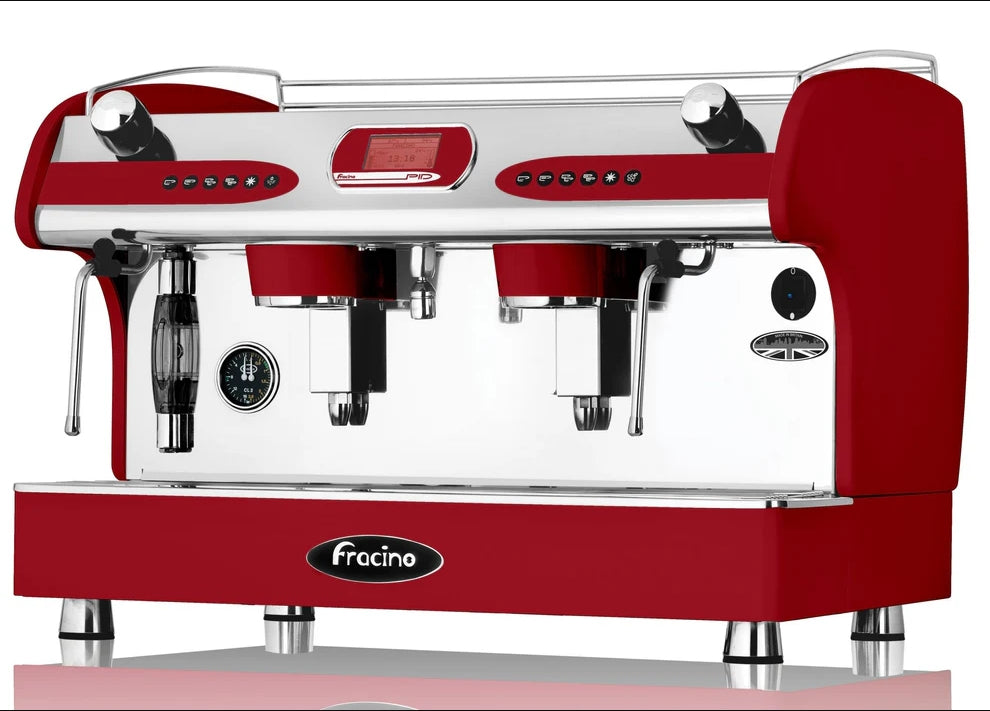

Fracino Romano P.I.D

The PID is available in 2 and 3 group versions. Each group has an independent boiler for optimum temperature control - settable between 80-115°C - for example, the user can set one group to 89°C and another to 92°C, whilst still maintaining the standard large capacity boiler for smooth-flow hot water and copious quantities of steam.

Key Features

• Top quality copper boiler heated by multiple looped element.
• Pressure controlled by a triple contact pressure switch.
• Automatic water level system with a probe, electronic control unit and solenoid valve.
• The pressure of water and steam is separately controlled by brass safety valves.
• Standard clearance is 110mm.
• Case, waste and cup tray are all made from stainless steel 304.
• Independent group boilers - nickel plated brass.

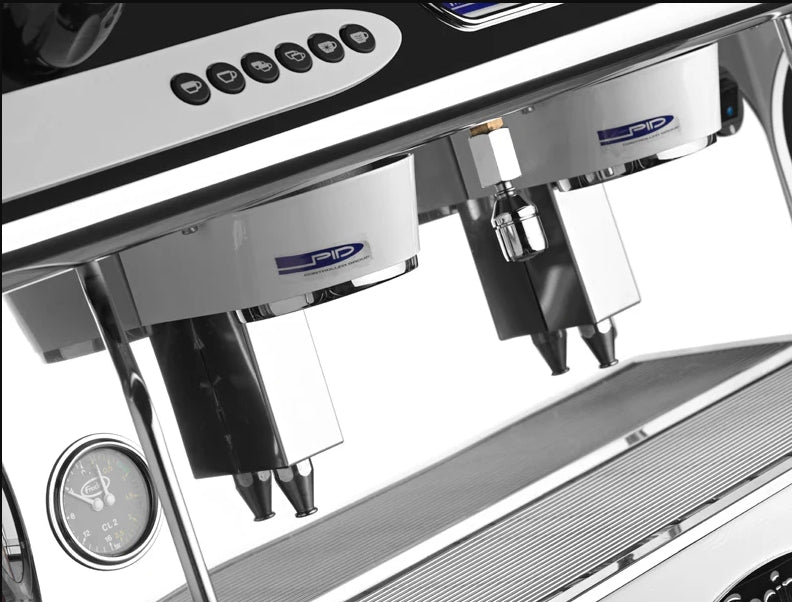

• Brass bodied group with stainless shower plate, solenoid valve and high pressure pump.
• Automatic on/off timer - the machine can be set to turn on and off at set times.
• F.A.S.T steam system (on right) which can be used at the same time as the groups.
• Dual pressure gauge showing water and steam pressure.
• Easy clean steam tubes.

Auto Control Features

• Each group has an independent boiler for optimum temperature control - settable between 80-115°C - for example, the user can set one group to 89°C and another to 92°C, whilst still maintaining the standard boiler for water and steam.
• Group Boiler Temperatures accurate to +/-1°C.
• Programmable pre-infusion times.
• Electronic hot water valve with programmable dispensing time - mixed hot water - temperature of water can be changed.
• Programmable shot volumes and built in shot timer.

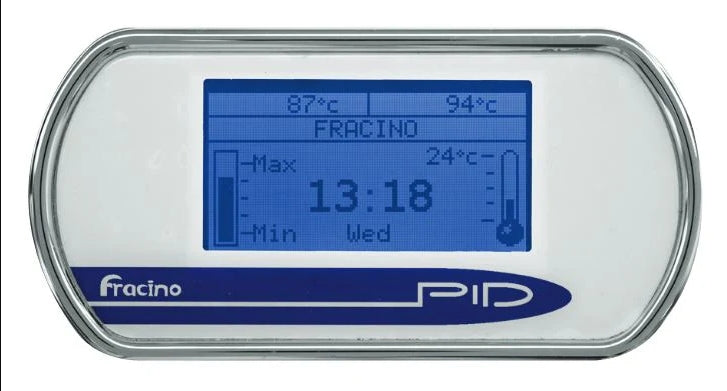

• LCD display shows current group temperatures, steam boiler temperature, time, machine status/diagnostics.
• Drinks counter - user can view the number of drinks made by each group.
• Service timer - can program number of shots before service is required. When reached, a warning message appears in LCD.
• Water volume usage - can view amount of water used.
• Water filter - can program the amount of water used before filter needs replacing - a warning message appears in LCD.
• Latte and cappuccino foam consistency adjustment and programmable milk temperature – when equipment is fitted with (optional) FAST Steam System Upgrade.
• Can change the colour of the LCD if required. 5 colours: Dark Blue, Light Blue, Green, Red and Purple.
• Language options: English, Italian, French and German.

Technical Specifications
